Data Centric Network (Unit 2)

-

 Data-Centric Network (Unit 2)

Components of Enterprise

  • Campus Network
  • Private WAN
  • Remote Access
  • Internet server farm
  • Extranet server farm
  • Intranet server farm

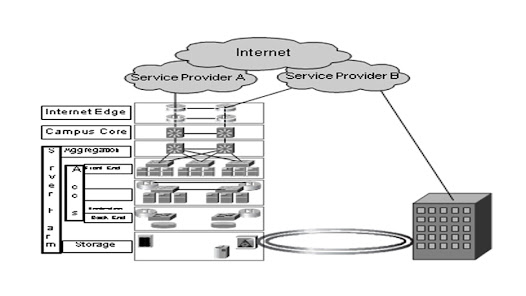

Data Center Layers

      • Aggregation - Multilayer, switches, firewall & load balancers.
      • Access - Layer 2 connectivity between server farm and server functions.

      • Front End Segment - Protocols (SMTP), Telnet, web servers, etc.
      • Application Segment - Layer 2 connectivity for security policies and firewalls.
      • Backend Segment - Deals with segment storage and connections to database and server.
      • Storage Layer - Server storage and consolidation and communication between them.
      • Transport Layer - Bandwidth, transport protocols like SONET, cabling, and network, etc.

Architecture Models

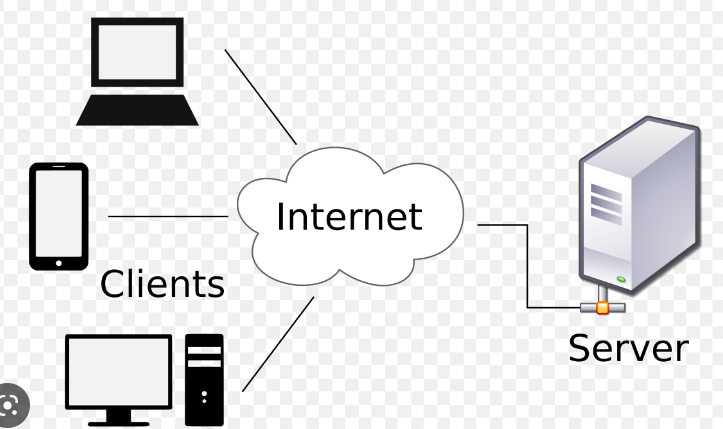

  • Client Server Model

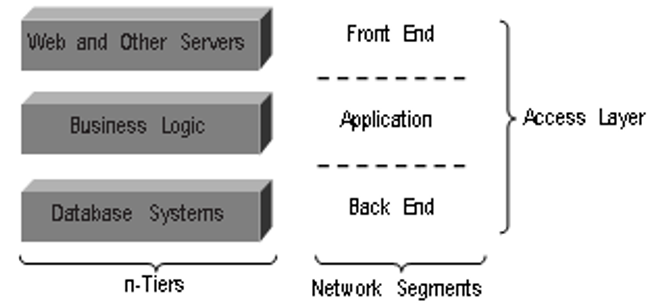

  • N-Tier model
  • Multitier Architecture

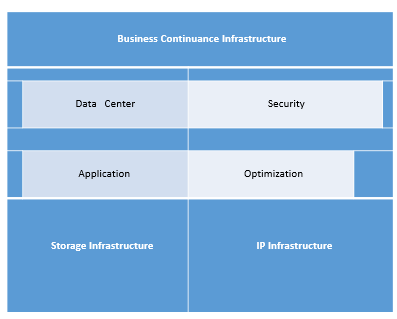

Data Center Services

  • IP Infrastructure

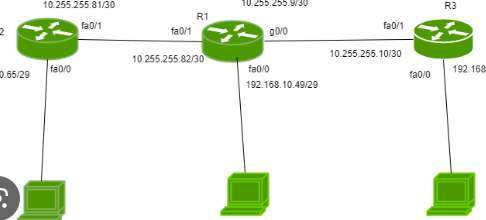

    • Manual or static routing - Manually configuring the entire routing table.
    • BGP - Inter-domain protocols are run for routing.

    • IGPs

    • OSPF - Intra-domain routing protocols followed.

    • EIGRP

  • Application
    • Load-balancer - To reduce failure of a certain node due to failure.
    • SSL - Encryption, and security.
  • Security
    • Firewalls
    • ACLs
    • Layer 2 & 3 Security Features.
  • Storage
  • Business Continuation
    • Site selection
    • SAN extension
    • DC interconnectivity
  • TOR & EOR

Power Reduction

  • Energy usage monitor - ASHARE Standards for robust energy usage.

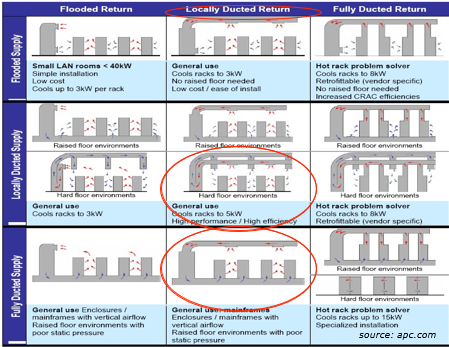

  • Optimize air supply - Using cold air currents to cool down heated rooms.
  • Optimize CRAC - Energy saving based electrical equipment.
  • Separate hot & cold air - Eliminates mixing of the 2 currents being unutilized.
  • Improve underflow air pressure - Removing underflow blockades lead to efficient energy usage.
  • Improve CRAC - Replace old CRAC equipment with new ones.
  • Improve transformers - For better electricity utilization.
  • Improve Lighting - To ensure lesser mishaps.

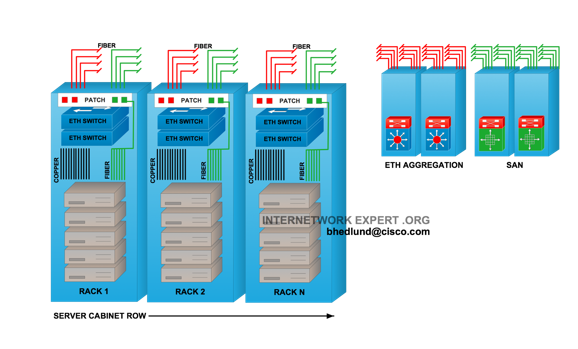

Cable Management

Access Aggregation Connections

  • Looped Triangle
  • Looped Square
  • Looped Free U
  • Looped Inverted Free U

TIA-942 Standard

  • Data Center Spaces
  • Cabling
  • Electrical
  • Cooling
  • Tier System
